Rich Barn - Auburn, PA


The Rich Barn is a 40'x96' Native Oak timber frame located in Pennsylvania. We worked with the owner to design and build a barn to his specifications. It features a huge open area to store tractors and equipment, and a loft area for a potential office or game area.

Click on the following links to view .pdf's of the framing plans, or scroll down to see more pictures. A 3D rotatable file of our frame can also be downloaded from this page. You may need to download an o2c viewer. It will take a minute to do, but it will be worth it! Click here to download the o2c Viewer


Framing Plan

Perspectives

Joint Details

3d Rotatable Frame
Click here to download the o2c Viewer

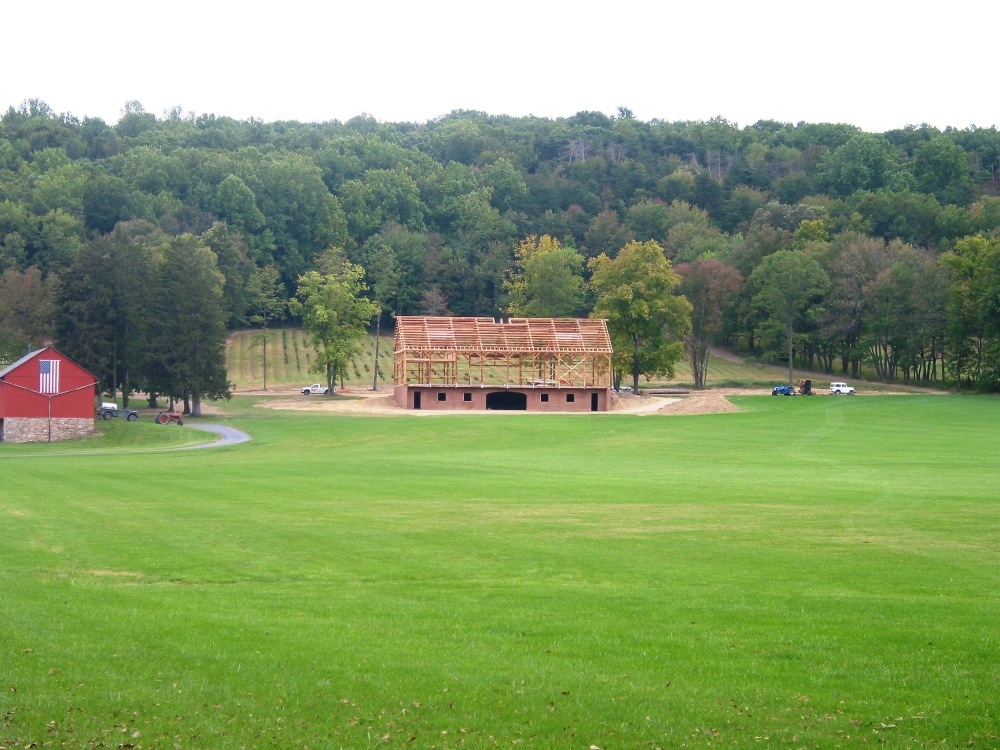

Oak Post & Beam Barn Timber Framed Gable Framing with a Tree on Top
Oak Post & Beam Barn Timber Framed Gable Framing with a Tree on Top
Interior Oak Barn Framing With Steel Tie Rod Timber Framers After the Raising
Interior Oak Barn Framing With Steel Tie Rod Timber Framers After the Raising
Post & Beam Barn With Timber Truss Door Header Timber Framed Rail for Loft Area
Post & Beam Barn With Timber Truss Door Header Timber Framed Rail for Loft Area
