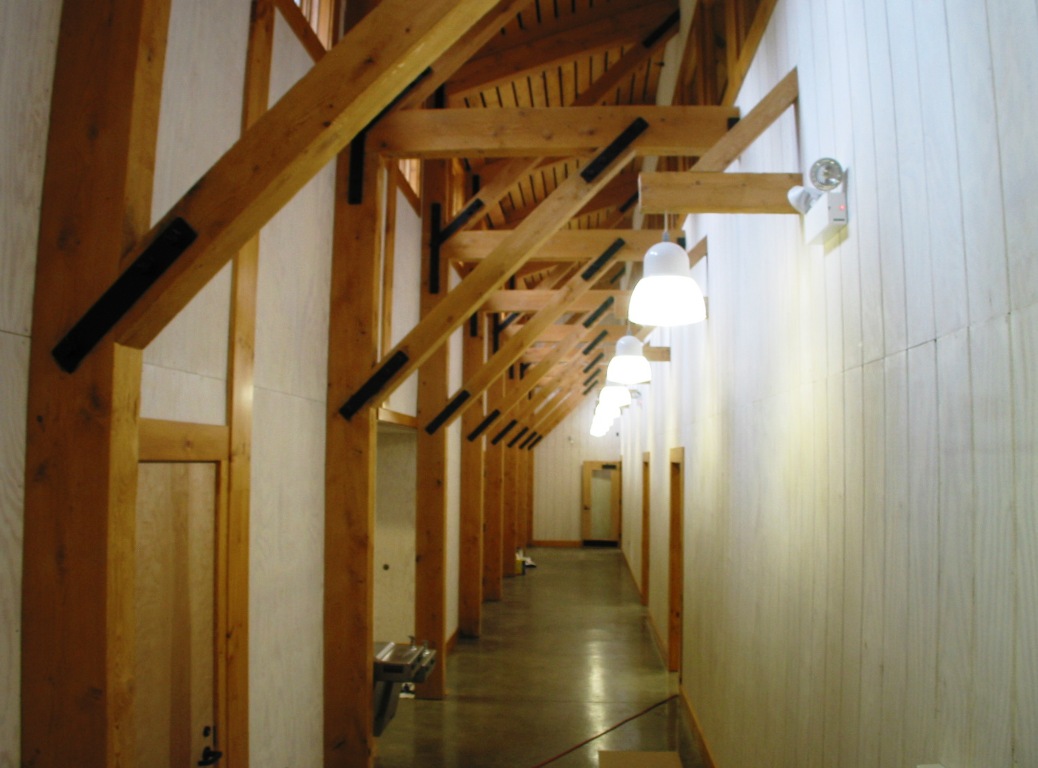

We worked with Kingdom Construction, Black River Design and Kohler and Lewis Engineering on this technical center in Hardwick, VT. It uses classic Pratt style timber trusses, douglas fir wood, and steel gusset plates. The timber frame engineering was done by our in-house structural engineer. The timber is native FSC certified hemlock.
Click on the following links to view .pdf's of the framing plans, or scroll down to see more pictures. A 3D rotatable file of our frame can also be downloaded from this page. You may need to download an o2c viewer. It will take a minute to do, but it
will be worth it! Click here to download the o2c Viewer
|
